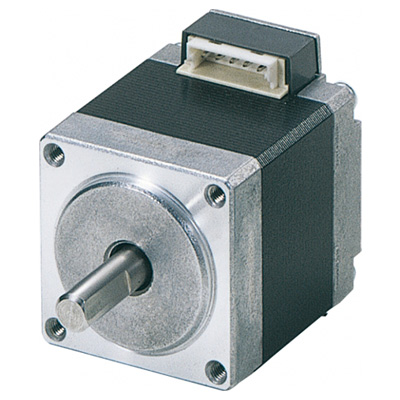

  • pk523pa-img

The high-torque PK/PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

  • 1.10 in. (28 mm) Frame Size
  • 5-Phase, New Pentagon (0.36° / 0.72°)
  • Single or Double Shaft
  • Max. Holding Torque
    • Round Shaft Type = 6.8 ~ 11 oz-in (0.052 ~ 0.091 N·m)
    • Geared Type = 1.75 ~ 21 lb-in (0.2 ~ 2.4 N·m)
1 - 25 of 38 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Basic Step Angle

  • 0.36°
  • 0.72°

Current per Phase (A/phase)

  • 0.35
  • 0.75
  • 1.2

Gear Type

  • Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft
  • Planetary, Low Backlash (up to 35 arc min), Centered Shaft
  • Planetary, Non Backlash (3 arc min), Centered Shaft
  • Harmonic, Non Backlash (0 arc min), Centered Shaft
  • No Gearhead

Shaft

  • Single
  • Double

Item #

Frame Size

Basic Step Angle

Speed-Torque Characteristics

Holding Torque

Current per Phase

Shaft/Gear Type

Gear Ratio (X:1)

Encoder Output

Shaft

Web Price

Add To Cart / Contact Sales
- 1.1 in28 mm - 0.72°
Speed - Torque Characteristics
 		- 7.3 oz-in0.052 N·m - 1.2 A/phase - Round Shaft (No Gearhead) - - - Single - $64.00
$54.40 		Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed - Torque Characteristics
 		- 7.3 oz-in0.052 N·m - 1.2 A/phase - Round Shaft (No Gearhead) - - - Double - $66.00
$56.10 		Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed - Torque Characteristics
 		- 12.9 oz-in0.091 N·m - 1.2 A/phase - Round Shaft (No Gearhead) - - - Single - $74.00
$62.90 		Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed - Torque Characteristics
 		- 12.9 oz-in0.091 N·m - 1.2 A/phase - Round Shaft (No Gearhead) - - - Double - $76.00
$64.60 		Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 6.8 oz-in0.048 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Single - $86.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 56 oz-in0.4 N·m - 0.35 A/phase - Planetary Gear - 10 :1 - - Single - $687.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 28 oz-in0.2 N·m - 0.35 A/phase - Planetary Gear - 5 :1 - - Single - $687.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.35 A/phase - Planetary Gear - 7.2 :1 - - Single - $687.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.35 A/phase - Taper Hobbed Gear - 10 :1 - - Single - $279.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 56 oz-in0.4 N·m - 0.35 A/phase - Taper Hobbed Gear - 20 :1 - - Single - $279.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 71 oz-in0.5 N·m - 0.35 A/phase - Taper Hobbed Gear - 30 :1 - - Single - $279.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 28 oz-in0.2 N·m - 0.35 A/phase - Taper Hobbed Gear - 7.2 :1 - - Single - $265.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 6.8 oz-in0.048 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Double - $89.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 56 oz-in0.4 N·m - 0.35 A/phase - Planetary Gear - 10 :1 - - Double - $690.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 28 oz-in0.2 N·m - 0.35 A/phase - Planetary Gear - 5 :1 - - Double - $690.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.35 A/phase - Planetary Gear - 7.2 :1 - - Double - $690.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.35 A/phase - Taper Hobbed Gear - 10 :1 - - Double - $282.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 56 oz-in0.4 N·m - 0.35 A/phase - Taper Hobbed Gear - 20 :1 - - Double - $282.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 71 oz-in0.5 N·m - 0.35 A/phase - Taper Hobbed Gear - 30 :1 - - Double - $282.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 28 oz-in0.2 N·m - 0.35 A/phase - Taper Hobbed Gear - 7.2 :1 - - Double - $267.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 11 oz-in0.078 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Single - $98.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.72°
Speed-Torque Characteristics
 		- 11 oz-in0.078 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Double - $100.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.36°
Speed-Torque Characteristics
 		- 5.9 oz-in0.042 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Single - $96.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.36°
Speed-Torque Characteristics
 		- 5.9 oz-in0.042 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Double - $98.00 Add To Cart
Request Quote
- 1.1 in28 mm - 0.36°
Speed-Torque Characteristics
 		- 8.6 oz-in0.061 N·m - 0.35 A/phase - Round Shaft (No Gearhead) - - - Single - $102.00 Add To Cart
Request Quote
