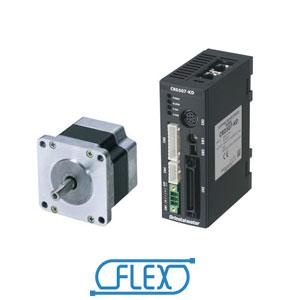

CRK Series Stepper Motors with Built-in Controller (Stored Data) (DC Input)
Stepper Motors & Drivers (Network)
The CRK Series with a built in controller is a compact, space saving stepping motor and driver package with a stored data controller built in.
- Controller control features: 1: I/O 2: Modbus (RTU)/RS-485 3: FA Network (network converter)
- Lowest vibration motor performance
- High-torque / High-resolution motor options
- Din Rail mount
- GUI software available
- Geared options
- Resolution - 1.8° ~ 0.00288° [25 steps] (Microstep)
- 24 VDC power supply input
- RoHS compliant
Item # |
Frame Size |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Electromagnetic Brake |
Encoder Output |
Shaft |
Power Supply |
Web Price |
List Price |
Add To Cart / Contact Sales |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRK513PAKD CRK513PAKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 0.79 in20 mm |

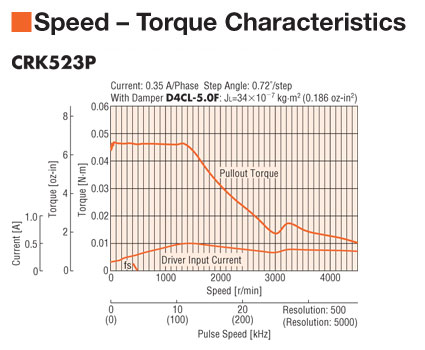

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 3.2 oz-in0.0231 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $423.00 | List Price - $423.00 |
Add To Cart
Request Quote |
| CRK513PBKD CRK513PBKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 0.79 in20 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 3.2 oz-in0.0231 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $428.00 | List Price - $428.00 |
Add To Cart
Request Quote |
| CRK513PAKD-H50 CRK513PAKD-H50/Asset/crk513pakd-h_-img.jpg | Frame Size - 0.79 in20 mm |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $1,191.00 | List Price - $1,191.00 |
Add To Cart
Request Quote |
| CRK513PBKD-H50 CRK513PBKD-H50/Asset/crk513pakd-h_-img.jpg | Frame Size - 0.79 in20 mm |
Speed-Torque Characteristics
Speed-Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $1,197.00 | List Price - $1,197.00 |
Add To Cart
Request Quote |
| CRK513PAKD-H100 CRK513PAKD-H100/Asset/crk513pakd-h_-img.jpg | Frame Size - 0.79 in20 mm |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque - 85 oz-in0.6 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 100 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $1,191.00 | List Price - $1,191.00 |
Add To Cart
Request Quote |
| CRK513PBKD-H100 CRK513PBKD-H100/Asset/crk513pakd-h_-img.jpg | Frame Size - 0.79 in20 mm |
Speed-Torque Characteristics
Speed-Torque Characteristics |
Holding Torque - 85 oz-in0.6 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 100 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $1,197.00 | List Price - $1,197.00 |
Add To Cart
Request Quote |
| CRK523PAKD CRK523PAKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 6.8 oz-in0.048 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $409.00 | List Price - $409.00 |
Add To Cart
Request Quote |
| CRK523PBKD CRK523PBKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 6.8 oz-in0.048 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $412.00 | List Price - $412.00 |
Add To Cart
Request Quote |
| CRK523PMAKD CRK523PMAKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 5.9 oz-in0.042 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $419.00 | List Price - $419.00 |
Add To Cart
Request Quote |
| CRK523PMBKD CRK523PMBKD/Asset/CRK-FLEX_hightorque.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 5.9 oz-in0.042 N·m | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $421.00 | List Price - $421.00 |
Add To Cart
Request Quote |
| CRK523PAKD-T7.2 CRK523PAKD-T7.2/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 28 oz-in0.2 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 7.2 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $588.00 | List Price - $588.00 |
Add To Cart
Request Quote |
| CRK523PBKD-T7.2 CRK523PBKD-T7.2/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 28 oz-in0.2 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 7.2 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $590.00 | List Price - $590.00 |
Add To Cart
Request Quote |
| CRK523PAKD-T10 CRK523PAKD-T10/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 42 oz-in0.3 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $602.00 | List Price - $602.00 |
Add To Cart
Request Quote |
| CRK523PBKD-T10 CRK523PBKD-T10/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 42 oz-in0.3 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 10 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $605.00 | List Price - $605.00 |
Add To Cart
Request Quote |
| CRK523PAKD-T20 CRK523PAKD-T20/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $602.00 | List Price - $602.00 |
Add To Cart
Request Quote |
| CRK523PBKD-T20 CRK523PBKD-T20/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 20 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $605.00 | List Price - $605.00 |
Add To Cart
Request Quote |
| CRK523PAKD-T30 CRK523PAKD-T30/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 71 oz-in0.5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $602.00 | List Price - $602.00 |
Add To Cart
Request Quote |
| CRK523PBKD-T30 CRK523PBKD-T30/Asset/crk52_pakd-t_-timg.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 71 oz-in0.5 N·m | Shaft/Gear Type - Taper Hobbed Gear | Gear Ratio (X:1) - 30 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $605.00 | List Price - $605.00 |
Add To Cart
Request Quote |
| CRK523PAKD-PS5 CRK523PAKD-PS5/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque - 28 oz-in0.2 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $753.00 | List Price - $753.00 |
Add To Cart
Request Quote |
| CRK523PBKD-PS5 CRK523PBKD-PS5/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed-Torque Characteristics |
Holding Torque - 28 oz-in0.2 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 5 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $756.00 | List Price - $756.00 |
Add To Cart
Request Quote |
| CRK523PAKD-PS7 CRK523PAKD-PS7/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque - 42 oz-in0.3 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 7.2 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $753.00 | List Price - $753.00 |
Add To Cart
Request Quote |
| CRK523PBKD-PS7 CRK523PBKD-PS7/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed-Torque Characteristics |
Holding Torque - 42 oz-in0.3 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 7.2 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $756.00 | List Price - $756.00 |
Add To Cart
Request Quote |
| CRK523PAKD-PS10 CRK523PAKD-PS10/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $753.00 | List Price - $753.00 |
Add To Cart
Request Quote |
| CRK523PBKD-PS10 CRK523PBKD-PS10/Asset/crk52_akd-ps_-img.jpg | Frame Size - 1.1 in28 mm |
Speed-Torque Characteristics
Speed-Torque Characteristics |
Holding Torque - 56 oz-in0.4 N·m | Shaft/Gear Type - Planetary Gear | Gear Ratio (X:1) - 10 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Double | Power Supply - 24 VDC | $756.00 | List Price - $756.00 |
Add To Cart
Request Quote |
| CRK523PAKD-H50 CRK523PAKD-H50/Asset/crk52_pakd-h_-img.jpg | Frame Size - 1.18 in30 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 255 oz-in1.8 N·m | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Electromagnetic Brake - Not Equipped | Encoder Output - None | Shaft - Single | Power Supply - 24 VDC | $1,061.00 | List Price - $1,061.00 |
Add To Cart
Request Quote |
