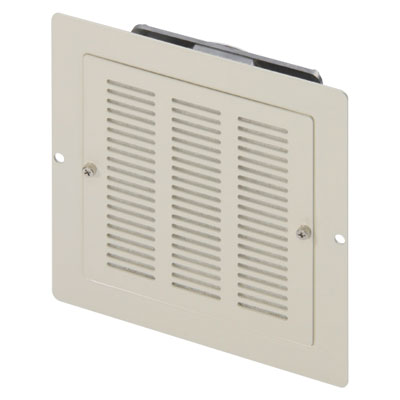

Slit Metal Plate IP4X Axial Fans On Oriental Motor 2

Seleccionando un Motor

Motor Sizing Tools

Herramienta de Conversión de Unidades

Longitud:

Masa:

Peso:

Inercia:

Par:

Velocidad:
^°

° = Para la entrada de los motores paso a paso Ángulo del paso, para la rotación de los motores de AC o de BLDC = 360°

Para Inglés o Español:

Haga clic aquí para enviarnos un correo electrónico

Para japonés:

J-support@orientalmotor.com

Clientes de Mexíco:

Servicio Al Cliente - +001-847-871-5931

Soporte técnico - 01-800-681-5309

Clientes Internacionales:

+1-847-871-5931 o

+1-310-715-3304

Para soporte en productos del catálogo japonés:

1-800-746-6872 o

+1-310-715-3304

Item #	Enclosure Dimensions	Frame Size	Power Supply	Degree of Protection	Air Flow Direction	Max. Air Flow	Max. Static Pressure	Web Price	Add To Cart / Contact Sales
C-MD1225-24H-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- 24 VDC	- IP4X	- Exhaust Type	- 30.30 CFM0.86 m³/min	- 0.16 inH₂O41 Pa	- $94.00	Add To Cart Request Quote
C-MD1225-24H-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- 24 VDC	- IP4X	- Suction Type	- 30 CFM0.85 m³/min	- 0.13 inH₂O33 Pa	- $94.00	Add To Cart Request Quote
C-MDS1225-24H-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- 24 VDC	- IP4X	- Exhaust Type	- 35.30 CFM1 m³/min	- 0.26 inH₂O66 Pa	- $104.00	Add To Cart Request Quote
C-MDS1225-24H-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- 24 VDC	- IP4X	- Suction Type	- 38.80 CFM1.10 m³/min	- 0.20 inH₂O49 Pa	- $104.00	Add To Cart Request Quote
C-MU1225S-21-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 115 VAC	- IP4X	- Exhaust Type	- 28.20 CFM0.80 m³/min	- 0.17 inH₂O43 Pa	- $105.00	Add To Cart Request Quote
C-MU1225S-21-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 115 VAC	- IP4X	- Suction Type	- 31.70 CFM0.90 m³/min	- 0.16 inH₂O40 Pa	- $105.00	Add To Cart Request Quote
C-MU1225S-51-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 220/230 VAC	- IP4X	- Exhaust Type	- 28.20 CFM0.80 m³/min	- 0.17 inH₂O43 Pa	- $105.00	Add To Cart Request Quote
C-MU1225S-51-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 220/230 VAC	- IP4X	- Suction Type	- 31.70 CFM0.90 m³/min	- 0.16 inH₂O40 Pa	- $105.00	Add To Cart Request Quote
C-MU1238A-21B-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 115 VAC	- IP4X	- Exhaust Type	- 35.30 CFM1 m³/min	- 0.34 inH₂O85 Pa	- $104.00	Add To Cart Request Quote
C-MU1238A-21B-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 115 VAC	- IP4X	- Suction Type	- 31.70 CFM0.90 m³/min	- 0.23 inH₂O57 Pa	- $104.00	Add To Cart Request Quote
C-MU1238A-51B-SEG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 220/230 VAC	- IP4X	- Exhaust Type	- 35.30 CFM1 m³/min	- 0.34 inH₂O85 Pa	- $105.00	Add To Cart Request Quote
C-MU1238A-51B-SSG	- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)	- 4.69 in119 mm	- Single-Phase 220/230 VAC	- IP4X	- Suction Type	- 31.70 CFM0.90 m³/min	- 0.23 inH₂O57 Pa	- $105.00	Add To Cart Request Quote
C-MRS18-BH-SEG	- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)	- 7.09 in180 mm	- Single-Phase 100/115 VAC	- IP4X	- Exhaust Type	- 293 CFM8.30 m³/min	- 1.16 inH₂O290 Pa	- $399.00	Add To Cart Request Quote
C-MRS18-BH-SSG	- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)	- 7.09 in180 mm	- Single-Phase 100/115 VAC	- IP4X	- Suction Type	- 282 CFM8 m³/min	- 0.80 inH₂O200 Pa	- $399.00	Add To Cart Request Quote
C-MRS18-DH-SEG	- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)	- 7.09 in180 mm	- Single-Phase 200/230 VAC	- IP4X	- Exhaust Type	- 293 CFM8.30 m³/min	- 1.16 inH₂O290 Pa	- $409.00	Add To Cart Request Quote
C-MRS18-DH-SSG	- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)	- 7.09 in180 mm	- Single-Phase 200/230 VAC	- IP4X	- Suction Type	- 282 CFM8 m³/min	- 0.80 inH₂O200 Pa	- $409.00	Add To Cart Request Quote

Item #

Enclosure Dimensions

Frame Size

Power Supply

Degree of Protection

Air Flow Direction

Max. Air Flow

Max. Static Pressure

Web Price

Add To Cart / Contact Sales

C-MD1225-24H-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- 24 VDC

- IP4X

- Exhaust Type

- 30.30 CFM0.86 m³/min

- 0.16 inH₂O41 Pa

- $94.00

Add To Cart
Request Quote

C-MD1225-24H-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- 24 VDC

- IP4X

- Suction Type

- 30 CFM0.85 m³/min

- 0.13 inH₂O33 Pa

- $94.00

Add To Cart
Request Quote

C-MDS1225-24H-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- 24 VDC

- IP4X

- Exhaust Type

- 35.30 CFM1 m³/min

- 0.26 inH₂O66 Pa

- $104.00

Add To Cart
Request Quote

C-MDS1225-24H-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- 24 VDC

- IP4X

- Suction Type

- 38.80 CFM1.10 m³/min

- 0.20 inH₂O49 Pa

- $104.00

Add To Cart
Request Quote

C-MU1225S-21-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 115 VAC

- IP4X

- Exhaust Type

- 28.20 CFM0.80 m³/min

- 0.17 inH₂O43 Pa

- $105.00

Add To Cart
Request Quote

C-MU1225S-21-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 115 VAC

- IP4X

- Suction Type

- 31.70 CFM0.90 m³/min

- 0.16 inH₂O40 Pa

- $105.00

Add To Cart
Request Quote

C-MU1225S-51-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 220/230 VAC

- IP4X

- Exhaust Type

- 28.20 CFM0.80 m³/min

- 0.17 inH₂O43 Pa

- $105.00

Add To Cart
Request Quote

C-MU1225S-51-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 220/230 VAC

- IP4X

- Suction Type

- 31.70 CFM0.90 m³/min

- 0.16 inH₂O40 Pa

- $105.00

Add To Cart
Request Quote

C-MU1238A-21B-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 115 VAC

- IP4X

- Exhaust Type

- 35.30 CFM1 m³/min

- 0.34 inH₂O85 Pa

- $104.00

Add To Cart
Request Quote

C-MU1238A-21B-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 115 VAC

- IP4X

- Suction Type

- 31.70 CFM0.90 m³/min

- 0.23 inH₂O57 Pa

- $104.00

Add To Cart
Request Quote

C-MU1238A-51B-SEG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 220/230 VAC

- IP4X

- Exhaust Type

- 35.30 CFM1 m³/min

- 0.34 inH₂O85 Pa

- $105.00

Add To Cart
Request Quote

C-MU1238A-51B-SSG

- 7.09 in. (W) X 7.09 in. (H) 180 mm (W) X 180 mm (H)

- 4.69 in119 mm

- Single-Phase 220/230 VAC

- IP4X

- Suction Type

- 31.70 CFM0.90 m³/min

- 0.23 inH₂O57 Pa

- $105.00

Add To Cart
Request Quote

C-MRS18-BH-SEG

- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)

- 7.09 in180 mm

- Single-Phase 100/115 VAC

- IP4X

- Exhaust Type

- 293 CFM8.30 m³/min

- 1.16 inH₂O290 Pa

- $399.00

Add To Cart
Request Quote

C-MRS18-BH-SSG

- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)

- 7.09 in180 mm

- Single-Phase 100/115 VAC

- IP4X

- Suction Type

- 282 CFM8 m³/min

- 0.80 inH₂O200 Pa

- $399.00

Add To Cart
Request Quote

C-MRS18-DH-SEG

- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)

- 7.09 in180 mm

- Single-Phase 200/230 VAC

- IP4X

- Exhaust Type

- 293 CFM8.30 m³/min

- 1.16 inH₂O290 Pa

- $409.00

Add To Cart
Request Quote

C-MRS18-DH-SSG

- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H)

- 7.09 in180 mm

- Single-Phase 200/230 VAC

- IP4X

- Suction Type

- 282 CFM8 m³/min

- 0.80 inH₂O200 Pa

- $409.00

Add To Cart
Request Quote
