Product Line |
- ORIX ® |
Fan Type |
- Enclosure Fan |
Cover Type |
- Slit Metal Plate (IP4X) |
Enclosure Dimensions |
- 11.18 in. (W) X 11.18 in. (H) 284 mm (W) X 284 mm (H) |
Frame Size |
- 7.09 in180 mm |
Thickness |
- 3.54 in.90 mm |
Power Supply |
- Single-Phase 200/230 VAC |
Frequency |
- 60 Hz |
Current |
- 0.5 A |
Degree of Protection |
- IP4X |
Air Flow Direction |
- Exhaust Type |
Speed (r/min) |
- 3350 |

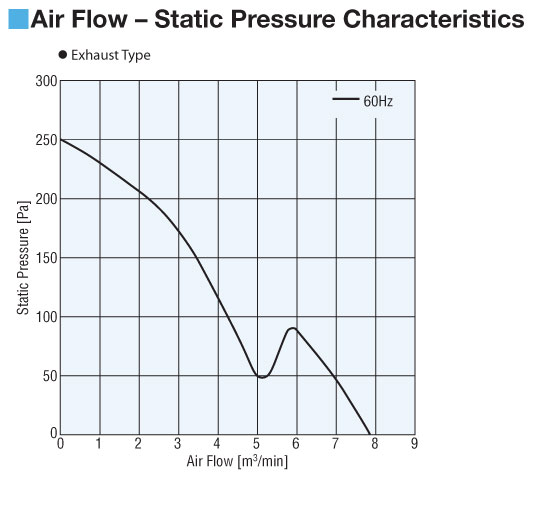

Max. Air Flow |
- 293 CFM 8.3 m³/min |
Max. Static Pressure |
- 1.16 inH2O 290 Pa |
Noise Level |
- 62 db (A) |
RoHS Compliant |
- Conforms to RoHS Directive (2011/65 / EU) |
Safety Standards |
- UL CSA EN CE |
CE Marking |
- Low Voltage Directives |
Insulation Resistance |
- 100 M Ω or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
Dielectric Strength |
- Sufficient to withstand 1.5 kV at 50Hz applied between the windings and the frame for 1 minute under normal ambient temperature and humidity. |
Temperature Rise |
- 54°F (30°C) or less measured by the thermometer method after the temperature of the case has stabilized after continuous operation under normal ambient temperature and humidity. |
Insulation Class |
- Class E (248°F [120°C]), Recognized as Class A (221°F [105°C]) by UL and CSA standards. |
Overheat Protection |
-
Built-in thermal protector (automatic reset type) Operating temperature, open: 248°F±9°F (120°C±5°C), close: 170.6°F±27°F (77°C±15°C) |
Ambient Temperature Range |
- 14°F ~ 140°F (-10°C ~ 60°C) |
Ambient Humidity |
- 85% or less (noncondensing) |
|
|
|
|
|
|
