The AZ Series offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Mechanical Absolute Encoder, absolute-type positioning is available, without battery back-up or external sensors to buy. Requires AZ Series Driver.

  • 2.36 in. (60 mm) Frame Size
  • Battery-Free, Mechanical Absolute Encoder
  • DC Input
  • Geared Type Available
  • Electromagnetic Brake Type Available
1 - 21 of 21 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Gear Type

  • Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft
  • Planetary, Low Backlash (up to 35 arc min), Centered Shaft
  • Harmonic Planetary, Non Backlash (up to 3 arc min), Centered Shaft
  • Harmonic Planetary, Non Backlash (up to 3 arc min), Flange Output
  • Harmonic, Non Backlash (0 arc min), Centered Shaft
  • No Gearhead

Gear Ratio (X:1) (:1)

  • 3.6
  • 5
  • 7.2
  • 10
  • 15
  • 20
  • 25
  • 30
  • 36
  • 50
  • 100

Electromagnetic Brake

  • Equipped
  • Not Equipped

Item #

Frame Size

Driver Voltage Input Power

Speed-Torque Characteristics

Holding Torque

Type

Shaft/Gear Type

Gear Ratio (X:1)

Shaft

Electromagnetic Brake

Web Price

Add To Cart / Contact Sales
- 2.36 in60 mm - DC

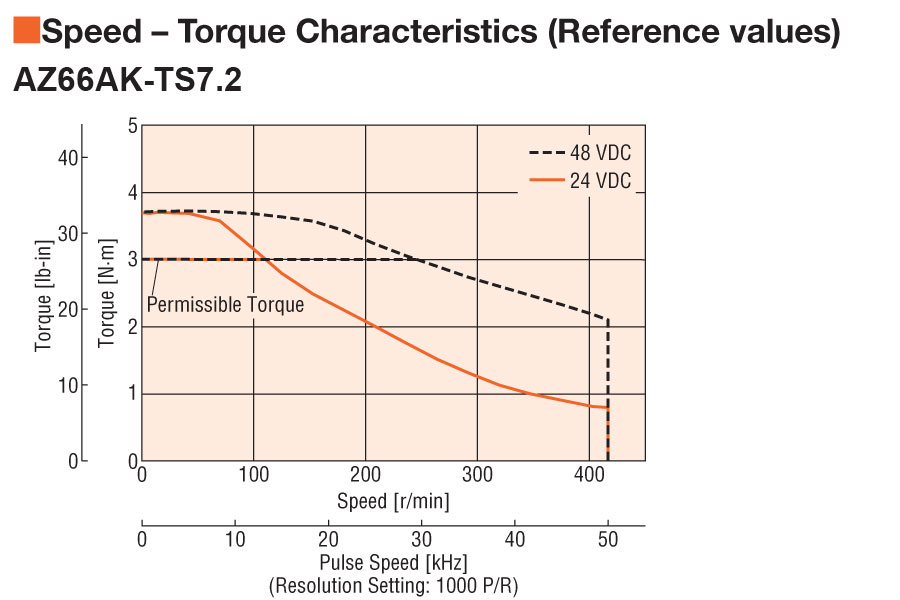

Speed - Torque Characteristics
 		- 142 oz-in1 N·m - Mechanical Absolute Encoder - Round Shaft (No Gearhead) - - Single - Not Equipped $362.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 142 oz-in1 N·m - Mechanical Absolute Encoder - Round Shaft (No Gearhead) - - Single - Equipped $565.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - Mechanical Absolute Encoder - Round Shaft (No Gearhead) - - Single - Not Equipped $367.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - Mechanical Absolute Encoder - Round Shaft (No Gearhead) - - Single - Equipped $571.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 255 oz-in1.80 N·m - Mechanical Absolute Encoder - Taper Hobbed Gear - 3.6 :1 - Single - Not Equipped $519.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 420 oz-in3 N·m - Mechanical Absolute Encoder - Taper Hobbed Gear - 7.2 :1 - Single - Not Equipped $519.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 566 oz-in4 N·m - Mechanical Absolute Encoder - Taper Hobbed Gear - 10 :1 - Single - Not Equipped $534.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 708 oz-in5 N·m - Mechanical Absolute Encoder - Taper Hobbed Gear - 20 :1 - Single - Not Equipped $534.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 849 oz-in6 N·m - Mechanical Absolute Encoder - Taper Hobbed Gear - 30 :1 - Single - Not Equipped $534.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 495 oz-in3.50 N·m - Mechanical Absolute Encoder - Planetary Gear - 5 :1 - Single - Not Equipped $678.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 566 oz-in4 N·m - Mechanical Absolute Encoder - Planetary Gear - 7.2 :1 - Single - Not Equipped $678.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 708 oz-in5 N·m - Mechanical Absolute Encoder - Planetary Gear - 10 :1 - Single - Not Equipped $678.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1132 oz-in8 N·m - Mechanical Absolute Encoder - Planetary Gear - 25 :1 - Single - Not Equipped $757.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1132 oz-in8 N·m - Mechanical Absolute Encoder - Planetary Gear - 36 :1 - Single - Not Equipped $757.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1132 oz-in8 N·m - Mechanical Absolute Encoder - Planetary Gear - 50 :1 - Single - Not Equipped $757.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 708 oz-in5 N·m - Mechanical Absolute Encoder - Harmonic Planetary Gear - 5 :1 - Single - Not Equipped $904.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1274 oz-in9 N·m - Mechanical Absolute Encoder - Harmonic Planetary Gear - 15 :1 - Single - Not Equipped $1,070.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 708 oz-in5 N·m - Mechanical Absolute Encoder - Harmonic Planetary Gear (Flange Output) - 5 :1 - Single - Not Equipped $887.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1274 oz-in9 N·m - Mechanical Absolute Encoder - Harmonic Planetary Gear (Flange Output) - 15 :1 - Single - Not Equipped $1,053.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 991 oz-in7 N·m - Mechanical Absolute Encoder - Harmonic Gear - 50 :1 - Single - Not Equipped $1,215.00 Add To Cart
Request Quote
- 2.36 in60 mm - DC
Speed - Torque Characteristics
 		- 1416 oz-in10 N·m - Mechanical Absolute Encoder - Harmonic Gear - 100 :1 - Single - Not Equipped $1,215.00 Add To Cart
Request Quote
