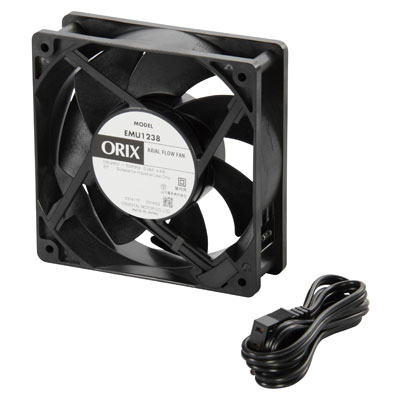

EMU Series 4.72 in. (120 mm) AC Axial Fans
EMU Series AC Axial Fans
These AC axial fans offer lower power consumption by utilizing a brushless motor. A wide voltage range can be used, single-phase 100-240V (50 / 60Hz) for the corresponding and the same performance characteristics are obtained regardless of the frequency used.
- Low Power Consumption
- AC Input
- 4.72 in (120 mm) Frame Size
- Maximum Airflow 106 CFM (3 m3/min)
Clear
Filter
Plug Cord
- 3.3 ft (1 m)
- 6.6 ft. (2 m)
Fan Kit
- Fan Only
- Fan, Finger Guard, Mounting Screws
Item # |
Frame Size |
Power Supply |
Plug Cord |
Max. Air Flow |
Max. Static Pressure |
Fan Kit |
Web Price |
Add To Cart / Contact Sales |
---|---|---|---|---|---|---|---|---|
EMU1238-1 EMU1238-1/Asset/emu1238-1-img.jpg | Frame Size - 4.72 in120 mm | Power Supply - Single-Phase 100 ~ 240 VAC | Plug Cord - 3.3 ft (1 m) | Max. Air Flow - 106 CFM 3 m3/min | Max. Static Pressure - 0.337 inH2O 84 Pa | Fan Kit - Fan Only | $52.00 |
Add To Cart
Request Quote |
EMU1238-2 EMU1238-2/Asset/emu1238-1-img.jpg | Frame Size - 4.72 in120 mm | Power Supply - Single-Phase 100 ~ 240 VAC | Plug Cord - 6.6 ft. (2 m) | Max. Air Flow - 106 CFM 3 m3/min | Max. Static Pressure - 0.337 inH2O 84 Pa | Fan Kit - Fan Only | $52.00 |
Add To Cart
Request Quote |
T-EMU1238-1-G T-EMU1238-1-G/Asset/t-emu1238-g-img.jpg | Frame Size - 4.72 in120 mm | Power Supply - Single-Phase 100 ~ 240 VAC | Plug Cord - 3.3 ft (1 m) | Max. Air Flow - 106 CFM 3 m3/min | Max. Static Pressure - 0.337 inH2O 84 Pa | Fan Kit - Fan, Finger Guard, Mounting Screws | $58.00 |
Add To Cart
Request Quote |
T-EMU1238-2-G T-EMU1238-2-G/Asset/t-emu1238-g-img.jpg | Frame Size - 4.72 in120 mm | Power Supply - Single-Phase 100 ~ 240 VAC | Plug Cord - 6.6 ft. (2 m) | Max. Air Flow - 106 CFM 3 m3/min | Max. Static Pressure - 0.337 inH2O 84 Pa | Fan Kit - Fan, Finger Guard, Mounting Screws | $58.00 |
Add To Cart
Request Quote |
