  • KR33-img.jpg

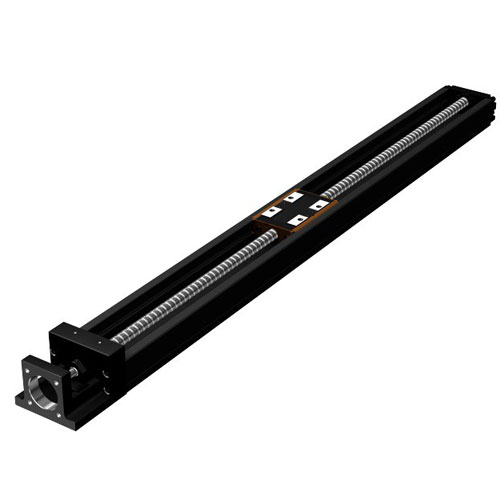

The THK KR Series consists of a highly ridid outer rail with a U-shaped cross section, LM Guide units on both sides and a Ball Screw unit in the center.

  • High Rigidity, Compact and Space Saving
  • Normal or High Accuracy types
  • 50 mm up to 600 mm Stoke Lengths
  • Maximum Input Torque = 1.244 N·m
  • Motor, Driver, Coupling, Flange, Sensors available
1 - 25 of 56 | Results Per Page | View |
1 2 3
Request Information Compare Items Search by Specification
Clear Filter

Cover Type

  • No
  • Yes

Ball Screw Grade

  • High Accuracy
  • Normal

Stroke (mm)

  • 50
  • 100
  • 200
  • 300
  • 400
  • 500
  • 600

Lead (mm)

  • 6
  • 10

Item #

Drive Method

Cover Type

Ball Screw Grade

Stroke

Lead

Maximum Speed

Backlash

Starting Torque

Maximum Input Torque

Maximum Input Speed

Web Price

Add To Cart / Contact Sales
- Ball Screw - No - Normal - 50 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,049.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 100 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,155.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 200 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,399.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 300 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,597.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 400 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,840.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 500 mm - 6 mm - 390 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 3950 (r/min) - $2,057.00 Add To Cart
Request Quote
- Ball Screw - No - Normal - 600 mm - 6 mm - 280 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 2820 (r/min) - $2,282.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 50 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,201.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 100 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,307.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 200 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,551.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 300 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,748.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 400 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,991.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 500 mm - 6 mm - 390 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 3950 (r/min) - $2,207.00 Add To Cart
Request Quote
- Ball Screw - Yes - Normal - 600 mm - 6 mm - 280 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 2820 (r/min) - $2,433.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 50 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,110.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 100 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,216.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 200 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,475.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 300 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,688.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 400 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,945.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 500 mm - 6 mm - 390 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 3950 (r/min) - $2,158.00 Add To Cart
Request Quote
- Ball Screw - No - High Accuracy - 600 mm - 6 mm - 280 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 2820 (r/min) - $2,396.00 Add To Cart
Request Quote
- Ball Screw - Yes - High Accuracy - 50 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,263.00 Add To Cart
Request Quote
- Ball Screw - Yes - High Accuracy - 100 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,367.00 Add To Cart
Request Quote
- Ball Screw - Yes - High Accuracy - 200 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,627.00 Add To Cart
Request Quote
- Ball Screw - Yes - High Accuracy - 300 mm - 6 mm - 470 mm/s - 0.02 mm - 0.07 N·m - 1.244 N·m - 4700 (r/min) - $1,840.00 Add To Cart
Request Quote
