  • pcj_arm66acd

The AR Series adopts our AlphaStep technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires AR Series Driver.

  • 2.36 in. (60 mm) Frame Size
  • Closed Loop
  • AC Input
  • Single or Double Shaft
  • Geared Type Available
  • Electromagnetic Brake Type Available



1 - 25 of 44 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Gear Type

  • Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft
  • Planetary, Low Backlash (up to 35 arc min), Centered Shaft
  • Planetary, Non Backlash (3 arc min), Centered Shaft
  • Harmonic, Non Backlash (0 arc min), Centered Shaft
  • No Gearhead

Gear Ratio (X:1) (:1)

  • 3.6
  • 5
  • 7.2
  • 10
  • 20
  • 25
  • 30
  • 36
  • 50
  • 100

Shaft

  • Single
  • Double

Electromagnetic Brake

  • Equipped
  • Not Equipped

Item #

Frame Size

Driver Voltage Input Power

Speed-Torque Characteristics

Holding Torque

Shaft/Gear Type

Gear Ratio (X:1)

Shaft

Electromagnetic Brake

Web Price

Add To Cart / Contact Sales
- 2.36 in60 mm - AC

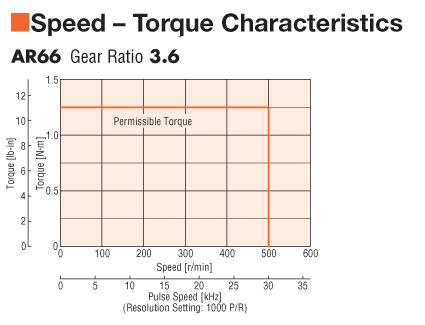

Speed - Torque Characteristics
 		- 170 oz-in1.2 N·m - Round Shaft (No Gearhead) - - Single - Not Equipped $192.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 176 oz-in1.25 N·m - Taper Hobbed Gear - 3.6 :1 - Single - Not Equipped $311.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 352 oz-in2.5 N·m - Taper Hobbed Gear - 7.2 :1 - Single - Not Equipped $311.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 416 oz-in3 N·m - Taper Hobbed Gear - 10 :1 - Single - Not Equipped $323.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 480 oz-in3.5 N·m - Taper Hobbed Gear - 20 :1 - Single - Not Equipped $323.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Taper Hobbed Gear - 30 :1 - Single - Not Equipped $323.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 480 oz-in3.5 N·m - Planetary Gear - 5 :1 - Single - Not Equipped $624.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Planetary Gear - 7.2 :1 - Single - Not Equipped $624.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 704 oz-in5 N·m - Planetary Gear - 10 :1 - Single - Not Equipped $624.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Planetary Gear - 25 :1 - Single - Not Equipped $756.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Planetary Gear - 36 :1 - Single - Not Equipped $756.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Planetary Gear - 50 :1 - Single - Not Equipped $756.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 490 oz-in3.5 N·m - Planetary Gear - 5 :1 - Single - Not Equipped $444.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - Planetary Gear - 7.2 :1 - Single - Not Equipped $444.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 710 oz-in5 N·m - Planetary Gear - 10 :1 - Single - Not Equipped $444.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Planetary Gear - 25 :1 - Single - Not Equipped $507.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Planetary Gear - 36 :1 - Single - Not Equipped $507.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1130 oz-in8 N·m - Planetary Gear - 50 :1 - Single - Not Equipped $507.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 768 oz-in5.5 N·m - Harmonic Gear - 50 :1 - Single - Not Equipped $894.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 1120 oz-in8 N·m - Harmonic Gear - 100 :1 - Single - Not Equipped $894.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 170 oz-in1.2 N·m - Round Shaft (No Gearhead) - - Double - Not Equipped $194.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 170 oz-in1.2 N·m - Round Shaft (No Gearhead) - - Single - Equipped $385.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 176 oz-in1.25 N·m - Taper Hobbed Gear - 3.6 :1 - Single - Equipped $504.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 352 oz-in2.5 N·m - Taper Hobbed Gear - 7.2 :1 - Single - Equipped $504.00 Add To Cart
Request Quote
- 2.36 in60 mm - AC
Speed - Torque Characteristics
 		- 416 oz-in3 N·m - Taper Hobbed Gear - 10 :1 - Single - Equipped $517.00 Add To Cart
Request Quote
