The high-torque PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

  • 1.65 in. (42 mm) Frame Size
  • 2-phase, Bipolar
  • Current per Phase = 0.28 A ~ 1.5 A
  • Single or Double Shaft
  • Geared type available
  • Encoder models available
  • Brake type available
  • Max. Holding Torque
    • Round Shaft Type = 49 ~ 132 oz-in (0.35 ~ 0.93 N·m)
    • Geared Type = 1.77 ~ 7 lb-in (0.2 ~ 0.8 N·m)
1 - 25 of 78 | Results Per Page | View | Unit of Measure
1 2 3 4
Request Information Compare Items Search by Specification
Clear Filter

Basic Step Angle

  • 0.9°
  • 1.8°

Current per Phase (A/phase)

  • 0.28
  • 0.35
  • 0.42
  • 0.57
  • 0.67
  • 0.85
  • 1.5

Gear Type

  • Basic Backlash (1 ~ 2°), Offset Shaft
  • No Gearhead

Shaft

  • Single
  • Double

Encoder

  • Not Equipped
  • Equipped

Encoder Type

  • Line Driver
  • Voltage

Electromagnetic Brake

  • Equipped
  • Not Equipped

Item #

Basic Step Angle

Frame Size

Motor Length

Speed-Torque Characteristics

Holding Torque

Current per Phase (A/phase)

Shaft/Gear Type

Gear Ratio (X:1)

Shaft

Encoder Type

Encoder Output

Lead Wires

Web Price

Add To Cart / Contact Sales
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 49 oz-in0.35 N·m - 1.5 - Round Shaft (No Gearhead) - - Single - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 49 oz-in0.35 N·m - 1.5 - Round Shaft (No Gearhead) - - Double - - - 4 - $50.00
$42.50 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 1.5 - Round Shaft (No Gearhead) - - Single - - - 4 - $49.00
$41.65 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 1.5 - Round Shaft (No Gearhead) - - Double - - - 4 - $51.00
$43.35 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.85 in.47 mm
Speed - Torque Characteristics
 		- 82 oz-in0.58 N·m - 1.5 - Round Shaft (No Gearhead) - - Single - - - 4 - $55.00
$46.75 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.85 in.47 mm
Speed - Torque Characteristics
 		- 82 oz-in0.58 N·m - 1.5 - Round Shaft (No Gearhead) - - Double - - - 4 - $57.00
$48.45 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 2.32 in.59 mm
Speed - Torque Characteristics
 		- 132 oz-in0.93 N·m - 1.5 - Round Shaft (No Gearhead) - - Single - - - 4 - $57.00
$48.45 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 2.32 in.59 mm
Speed - Torque Characteristics
 		- 132 oz-in0.93 N·m - 1.5 - Round Shaft (No Gearhead) - - Double - - - 4 - $59.00
$50.15 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.28 - Round Shaft (No Gearhead) - - Single - - - 4 - $46.00
$39.10 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.28 - Round Shaft (No Gearhead) - - Double - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.42 - Round Shaft (No Gearhead) - - Single - - - 4 - $46.00
$39.10 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.42 - Round Shaft (No Gearhead) - - Double - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.67 - Round Shaft (No Gearhead) - - Single - - - 4 - $46.00
$39.10 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 45 oz-in0.32 N·m - 0.67 - Round Shaft (No Gearhead) - - Double - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 0.9° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.67 - Round Shaft (No Gearhead) - - Single - - - 4 - $46.00
$39.10 		Add To Cart
Request Quote
- 0.9° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 42 oz-in0.3 N·m - 0.67 - Round Shaft (No Gearhead) - - Double - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 0.9° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 42 oz-in0.3 N·m - 1.5 - Round Shaft (No Gearhead) - - Single - - - 4 - $48.00
$40.80 		Add To Cart
Request Quote
- 0.9° - 1.65 in42 mm - 1.30 in.33 mm
Speed - Torque Characteristics
 		- 42 oz-in0.3 N·m - 1.5 - Round Shaft (No Gearhead) - - Double - - - 4 - $50.00
$42.50 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 65 oz-in0.46 N·m - 0.28 - Round Shaft (No Gearhead) - - Single - - - 4 - $47.00
$39.95 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 65 oz-in0.46 N·m - 0.28 - Round Shaft (No Gearhead) - - Double - - - 4 - $49.00
$41.65 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 0.57 - Round Shaft (No Gearhead) - - Single - - - 4 - $47.00
$39.95 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 0.57 - Round Shaft (No Gearhead) - - Double - - - 4 - $49.00
$41.65 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm

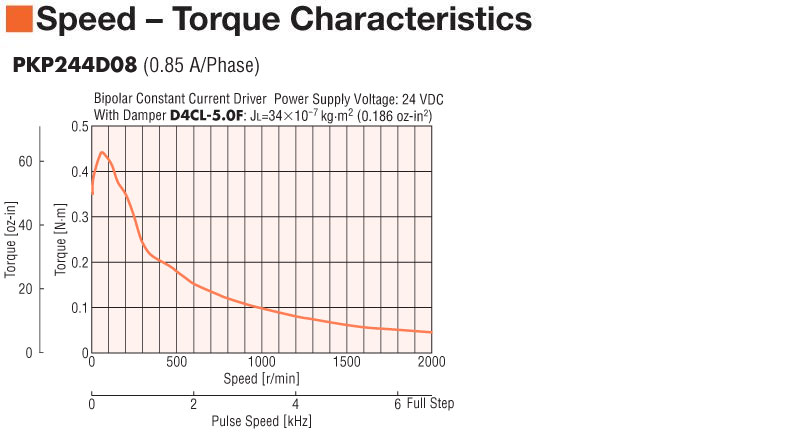

Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 0.85 - Round Shaft (No Gearhead) - - Single - - - 4 - $47.00
$39.95 		Add To Cart
Request Quote
- 1.8° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 68 oz-in0.48 N·m - 0.85 - Round Shaft (No Gearhead) - - Double - - - 4 - $49.00
$41.65 		Add To Cart
Request Quote
- 0.9° - 1.65 in42 mm - 1.54 in.39 mm
Speed - Torque Characteristics
 		- 59 oz-in0.42 N·m - 0.85 - Round Shaft (No Gearhead) - - Single - - - 4 - $47.00
$39.95 		Add To Cart
Request Quote
