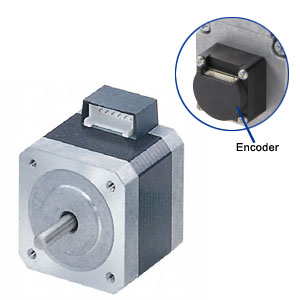

Motor Type |
- 2-Phase |
Basic Step Angle |
- 1.8° |
Frame Size |
- 1.65 in42 mm |
Motor Length |
- 1.83 in.46.5 mm |
Holding Torque |
- 49 oz-in0.35 N·m |
Current per Phase (A/phase) |
- 1.5 |
Voltage (VDC) |
- 2.85 |
Resistance (Ω/phase) |
- 1.9 |
Inductance (mH/phase) |
- 5 |
Shaft/Gear Type |
- Round Shaft (No Gearhead) |
Shaft |
- Single |
Encoder |
- Equipped |
Motor Connection Type |
- Connector |
Connection Type |
- Bipolar |
Lead Wires |
- 4 |
Rotor Inertia |
- 0.197 oz-in²36×10-7 kg·m² |
Insulation Class |
- Class B [266°F (130°C)] |
Insulation Resistance |
- 100 M Ω or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity. |
Dielectric Strength |
- Sufficient to withstand 1.0 kVAC at 60 Hz applied between the windings and the case for 1 minute under normal ambient temperature and humidity. |
Temperature Rise |
- Temperature rise of the windings is 176°F (80°C) or less measured by the change resistance method. (at rated voltage, at standstill, 2 phases energized) |
Ambient Temperature Range |
- 14 ~ 122°F (-10 ~ 50°C) (non-freezing) |
Ambient Humidity |
- 85% or less (non-condensing) |
Shaft Runout |
- 0.05 mm (0.002 in.) T.I.R. |
Step Accuracy |
- ±3 arc minutes (±0.05°) |
Radial Load |
- 0 in. from Shaft End = 4.5 lb0.2 in. from Shaft End = 5.6 lb0.39 in. from Shaft End = 7.6 lb0.59 in. from Shaft End = 11.7 lb0 mm from Shaft End = 20 N5 mm from Shaft End = 25 N10 mm from Shaft End = 34 N15 mm from Shaft End = 52 N |
Axial Load |
- 2.2 lb10 N |
Radial Play |
- 0.025 mm (0.001 in.) maximum of 5 N (1.12 lb.) |
Axial Play |
- 0.075 mm (0.003 in.) maximum of 10 N (2.2 lb.) |
Concentricity |
- 0.075 mm (0.003 in.) T.I.R. |
Perpendicularity |
- 0.075 mm (0.003 in.) T.I.R. |
Encoder Type |
- Voltage |
Encoder Resolution (P/R) |
- 200 |
Output |
- 3-Channel A, B, Z |
Input Current (mA) |
- 30 or less |
Input Voltage (V) |
- 5 ±10% |
Output Type |
- Voltage output |
Output Voltage (Low) |
- 0.5 V or less |
Output Voltage (High) |
- 4.3 V or more (with no load) |
Response Frequency (kHz) |
- 100 |
|
|
|
|
|
|
