The high-torque PK/PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

  • 1.65 in. (42 mm) Frame Size
  • 5-Phase, New Pentagon (0.36° / 0.72°)
  • Single or Double Shaft
  • Encoder and Brake Types Available
  • Max. Holding Torque
    • Round Shaft Type = 59 oz-in (0.42 N·m)
    • Geared Type = 44 lb-in (5 N·m)
76 - 100 of 111 | Results Per Page | View | Unit of Measure
1 2 3 4 5
Request Information Compare Items Search by Specification
Clear Filter

Basic Step Angle

  • 0.36°
  • 0.72°

Current per Phase (A/phase)

  • 0.75
  • 1.8

Gear Type

  • Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft
  • Planetary, Low Backlash (up to 35 arc min), Centered Shaft
  • Planetary, Non Backlash (3 arc min), Centered Shaft
  • Harmonic, Non Backlash (0 arc min), Centered Shaft
  • No Gearhead

Encoder

  • 500 P/R TTL 2-Channel
  • 500 P/R TTL 3-Channel
  • 500 P/R Differential, 3-Channel
  • 1000 P/R TTL 2-Channel
  • 1000 P/R TTL 3-Channel
  • 1000 P/R Differential, 3-Channel
  • None

Electromagnetic Brake

  • Equipped
  • Not Equipped

Shaft

  • Single
  • Double

Item #

Frame Size

Basic Step Angle

Speed-Torque Characteristics

Holding Torque

Current per Phase

Shaft/Gear Type

Gear Ratio (X:1)

Encoder Output

Electromagnetic Brake

Shaft

Web Price

Add To Cart / Contact Sales
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 34 oz-in0.24 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - 500 P/R TTL 3-Channel - Not Equipped - Single - $152.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 34 oz-in0.24 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - 1000 P/R TTL 3-Channel - Not Equipped - Single - $152.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°

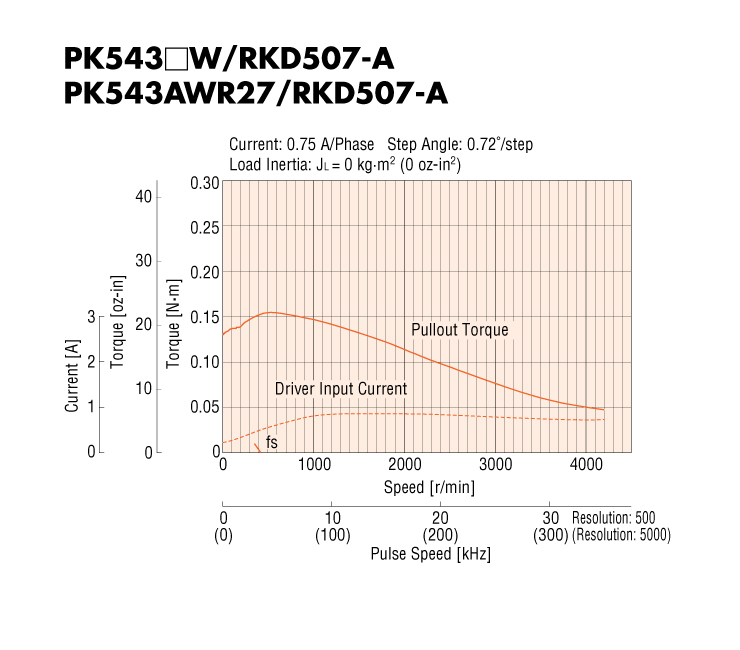

Speed-Torque Characteristics
 		- 18.4 oz-in0.13 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Single - $77.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 18.4 oz-in0.13 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Double - $80.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 25 oz-in0.18 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Single - $78.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 25 oz-in0.18 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Double - $81.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 34 oz-in0.24 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Single - $84.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 34 oz-in0.24 N·m - 0.75 A/phase - Round Shaft (No Gearhead) - - - Not Equipped - Double - $88.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 350 oz-in2.5 N·m - 0.75 A/phase - Planetary Gear - 25 :1 - - Not Equipped - Single - $441.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 36 :1 - - Not Equipped - Single - $441.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 50 :1 - - Not Equipped - Single - $441.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 350 oz-in2.5 N·m - 0.75 A/phase - Planetary Gear - 25 :1 - - Not Equipped - Double - $444.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 36 :1 - - Not Equipped - Double - $444.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 50 :1 - - Not Equipped - Double - $444.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 10 :1 - - Not Equipped - Single - $388.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 142 oz-in1 N·m - 0.75 A/phase - Planetary Gear - 5 :1 - - Not Equipped - Single - $388.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 7.2 :1 - - Not Equipped - Single - $388.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 10 :1 - - Not Equipped - Double - $391.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 142 oz-in1 N·m - 0.75 A/phase - Planetary Gear - 5 :1 - - Not Equipped - Double - $391.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 210 oz-in1.5 N·m - 0.75 A/phase - Planetary Gear - 7.2 :1 - - Not Equipped - Double - $391.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 480 oz-in3.5 N·m - 0.75 A/phase - Harmonic Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single - $827.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 704 oz-in5 N·m - 0.75 A/phase - Harmonic Gear - 100 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single - $827.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 350 oz-in2.5 N·m - 0.75 A/phase - Planetary Gear - 25 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single - $526.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 36 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single - $526.00 Add To Cart
Request Quote
- 1.65 in42 mm - 0.72°
Speed-Torque Characteristics
 		- 420 oz-in3 N·m - 0.75 A/phase - Planetary Gear - 50 :1 - 500 P/R Differential, 3-Channel - Not Equipped - Single - $526.00 Add To Cart
Request Quote
