The high-torque PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

  • 2.22 in. (56.4 mm)/2.36 in. (60 mm) Frame Sizes
  • 2-phase, Bipolar
  • Current per Phase = 0.71 A ~ 4.2 A
  • Single or Double Shaft
  • Geared type available
  • Encoder models available
  • Brake type available
  • Max. Holding Torque
    • Round Shaft Type = 85 ~ 320 oz-in (0.6 ~ 2.3 N·m)
    • Geared Type = 8.8 ~ 35 lb-in (1 ~ 4 N·m)
51 - 75 of 96 | Results Per Page | View | Unit of Measure
1 2 3 4
Request Information Compare Items Search by Specification
Clear Filter

Basic Step Angle

  • 0.9°
  • 1.8°

Current per Phase (A/phase)

  • 0.71
  • 1.4
  • 2.1
  • 2.8
  • 4.2

Gear Type

  • Basic Backlash (1 ~ 2°), Offset Shaft
  • No Gearhead

Shaft

  • Single
  • Double

Encoder

  • Not Equipped
  • Equipped

Encoder Type

  • Line Driver
  • Voltage

Electromagnetic Brake

  • Equipped
  • Not Equipped

Item #

Basic Step Angle

Frame Size

Motor Length

Speed-Torque Characteristics

Holding Torque

Current per Phase (A/phase)

Shaft/Gear Type

Gear Ratio (X:1)

Shaft

Encoder Type

Encoder Output

Lead Wires

Web Price

Add To Cart / Contact Sales
- 0.9° - 2.22 in56.40 mm - 3.64 in.92.5 mm

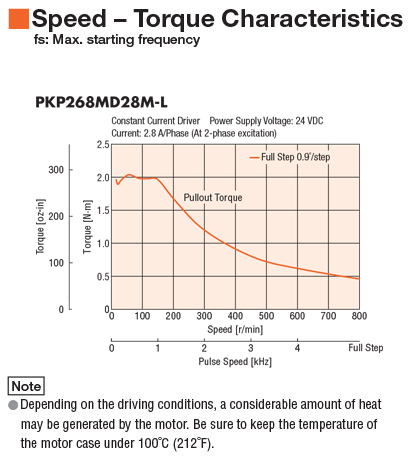

Speed - Torque Characteristics
 		- 325 oz-in2.23 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - Line Driver - 400 P/R, 3-Channel - 4 - $153.00
$130.05 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 2.18 in.55.5 mm
Speed - Torque Characteristics
 		- 85 oz-in0.6 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - Voltage - 400 P/R, 3-Channel - 4 - $131.00
$111.35 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 2.87 in.70.5 mm
Speed - Torque Characteristics
 		- 187 oz-in1.32 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - Voltage - 400 P/R, 3-Channel - 4 - $137.00
$116.45 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 3.64 in.92.5 mm
Speed - Torque Characteristics
 		- 325 oz-in2.23 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - Voltage - 400 P/R, 3-Channel - 4 - $153.00
$130.05 		Add To Cart
Request Quote
- 1.8° - 2.22 in56.40 mm - 2.97 in.75.5 mm
Speed - Torque Characteristicts
 		- 85 oz-in0.6 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $171.00
$145.35 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 2.97 in.75.5 mm
Speed - Torque Characteristicts
 		- 85 oz-in0.6 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $171.00
$145.35 		Add To Cart
Request Quote
- 1.8° - 2.22 in56.40 mm - 3.56 in.90.5 mm
Speed - Torque Characteristicts
 		- 198 oz-in1.4 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $177.00
$150.45 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 3.56 in.90.5 mm
Speed - Torque Characteristicts
 		- 187 oz-in1.32 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $177.00
$150.45 		Add To Cart
Request Quote
- 1.8° - 2.22 in56.40 mm - 4.43 in.112.5 mm
Speed - Torque Characteristicts
 		- 320 oz-in2.3 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $193.00
$164.05 		Add To Cart
Request Quote
- 0.9° - 2.22 in56.40 mm - 4.43 in.112.5 mm
Speed - Torque Characteristicts
 		- 325 oz-in2.23 N·m - 2.8 - Round Shaft (No Gearhead) - - Single - - - 4 - $193.00
$164.05 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm

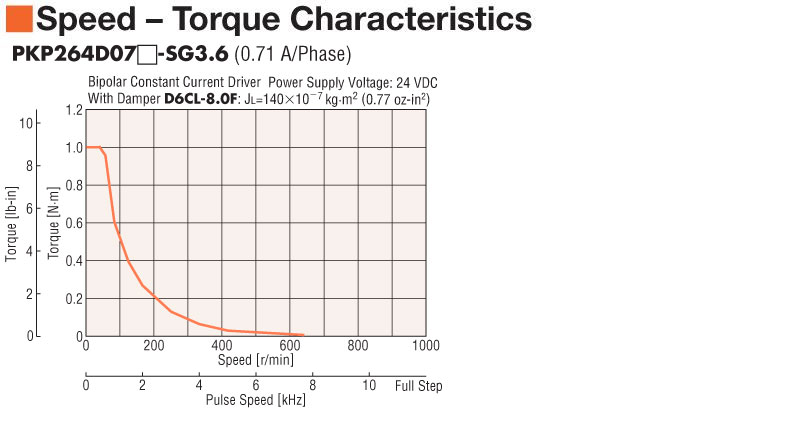

Speed - Torque Characteristics
 		- 140.8 oz-in1 N·m - 0.71 - Spur Gear - 3.6 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 140.8 oz-in1 N·m - 0.71 - Spur Gear - 3.6 :1 - Double - - - 4 - $163.00
$138.55 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 283.2 oz-in2 N·m - 0.71 - Spur Gear - 7.2 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 283.2 oz-in2 N·m - 0.71 - Spur Gear - 7.2 :1 - Double - - - 4 - $163.00
$138.55 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 352 oz-in2.5 N·m - 0.71 - Spur Gear - 9 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 352 oz-in2.5 N·m - 0.71 - Spur Gear - 9 :1 - Double - - - 4 - $163.00
$138.55 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 368 oz-in2.7 N·m - 0.71 - Spur Gear - 10 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 368 oz-in2.7 N·m - 0.71 - Spur Gear - 10 :1 - Double - - - 4 - $163.00
$138.55 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 416 oz-in3 N·m - 0.71 - Spur Gear - 18 :1 - Single - - - 4 - $169.00
$143.65 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 416 oz-in3 N·m - 0.71 - Spur Gear - 18 :1 - Double - - - 4 - $172.00
$146.20 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - 0.71 - Spur Gear - 36 :1 - Single - - - 4 - $169.00
$143.65 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 560 oz-in4 N·m - 0.71 - Spur Gear - 36 :1 - Double - - - 4 - $172.00
$146.20 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 142 oz-in1 N·m - 1.4 - Spur Gear - 3.6 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 142 oz-in1 N·m - 1.4 - Spur Gear - 3.6 :1 - Double - - - 4 - $163.00
$138.55 		Add To Cart
Request Quote
- 1.8° - 2.36 in60 mm - 3.09 in.78.50 mm
Speed - Torque Characteristics
 		- 280 oz-in2 N·m - 1.4 - Spur Gear - 7.2 :1 - Single - - - 4 - $160.00
$136.00 		Add To Cart
Request Quote
