This product is scheduled to be discontinued, please contact your local sales office for more information.

Replacement motors available on right sidebar.

Compatible Motors (sold separately)



Unit of Measure

Specifications

Product Line

 - Oriental Motor ®

Motor Type

 - Electromagnetic Brake - Induction

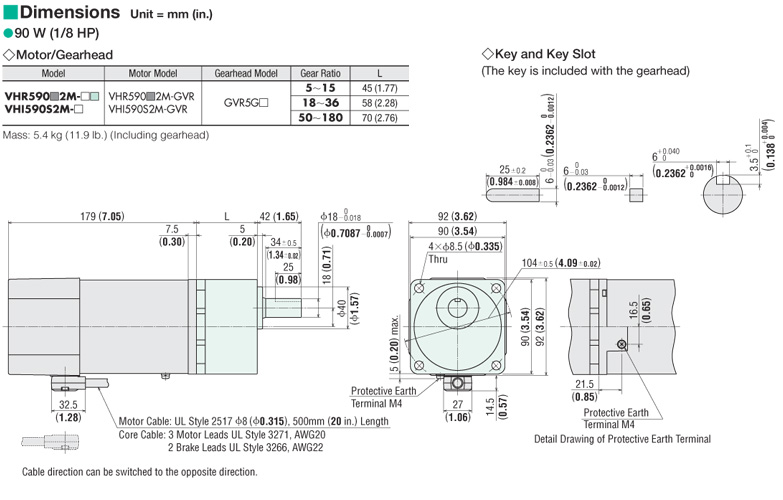

Frame Size

 - 3.54 in90 mm

Output Power

 - 90 W (1/8 HP)

Voltage (VAC)

 - Three-Phase 200/220/230 VAC

Frequency (Hz)

 - 60 50

Current

 - 0.59 A [200 VAC, 60 Hz] 0.60 A [220 VAC, 60 Hz] 0.61 A [230 VAC, 60 Hz] 0.64 A [200 VAC, 50 Hz]

Shaft/Gear Type

 - Pinion Shaft (Gearhead required - sold separately)

Type

 - Lead Wire

RoHS Compliant

 - Yes

Safety Standards

 - UL CSA CCC EN CE

CE Marking

 - Low Voltage Directives

Insulation Resistance

 - 100 M Ω or more when 500 VDC is applied between the windings and the frame after rated motor operation under normal ambient temperature and humidity.

Dielectric Strength

 - Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after rated motor operation under normal ambient temperature and humidity.

Temperature Rise

 - Temperature rise of windings are 126°F (70°C) or less measured by the resistance change method after rated motor operation with connection to gearhead.

Insulation Class

 - Class B (266°F [130°C])

Overheat Protection

 - Built-in thermal protector (Automatic return type). Operating temperature, open: 266°F ± 9°F (130°C ± 5°C) close: 179.6°F ± 27°F (82°C ± 15°C)

Ambient Temperature Range

 - 14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing)
Three-Phase 200 VAC: 14°F ~ 122°F (-10°C ~ 50°C) (nonfreezing)

Ambient Humidity

 - 85% maximum (noncondensing)

Degree of Protection

 - IP40
