This product is scheduled to be discontinued. It has been replaced with and improved Terminal Box. See the bottom of the item page for the replacement part number and specifications or contact technical support for more information.



Compatible Motors

Unit of Measure

Specifications

Product Line

 - Oriental Motor ®

Motor Type

 - Induction

Frame Size

 - 3.54 in90 mm

Output Power

 - 60 W (1/12 HP)

Voltage (VAC)

 - Single-Phase 110/115 VAC

Frequency (Hz)

 - 60

Current

 - 1.09 A

Shaft/Gear Type

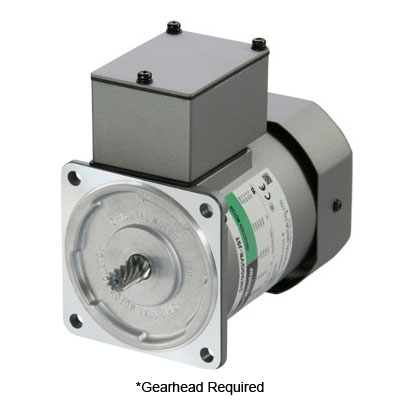

 - Pinion Shaft (Gearhead required - sold separately)

Type

 - Terminal Box

RoHS Compliant

 - Yes

Safety Standards

 - UL CSA CE

CE Marking

 - Low Voltage Directives

Insulation Resistance

 - 100 M Ω or more when 500 VDC megger is applied between the windings and the case after rated operation under normal ambient temperature and humidity.

Dielectric Strength

 - Sufficient to withstand 1.5 kV at 50 Hz or 60 Hz applied between the windings and the case for 1 minute after rated operation under normal ambient temperature and humidity.

Temperature Rise

 - Temperature rise of windings are 176°F (80°C) or less measured by the resistance change method after rated operation under normal ambient temperature and humidity.

Insulation Class

 - 130 (B)

Overheat Protection

 - Built-in thermal protector (automatic return type). Open: 266 ± 9°F (130 ± 5°C) Close: 185 ± 36°F (85 ± 20°C)

Ambient Temperature Range

 - 14°F ~ 104°F (-10°C ~ 40°C) (nonfreezing)

Ambient Humidity

 - 85% or less (noncondensing)

Degree of Protection

 - IP54 (exclusing the installation surface)
